screw compressors

1. Screw Compressors

DARI offers a complete range of belt-driven rotary screw compressors, fix or variable speed, to satisfy every compressed air need,
 from small-scale companies to big industries.

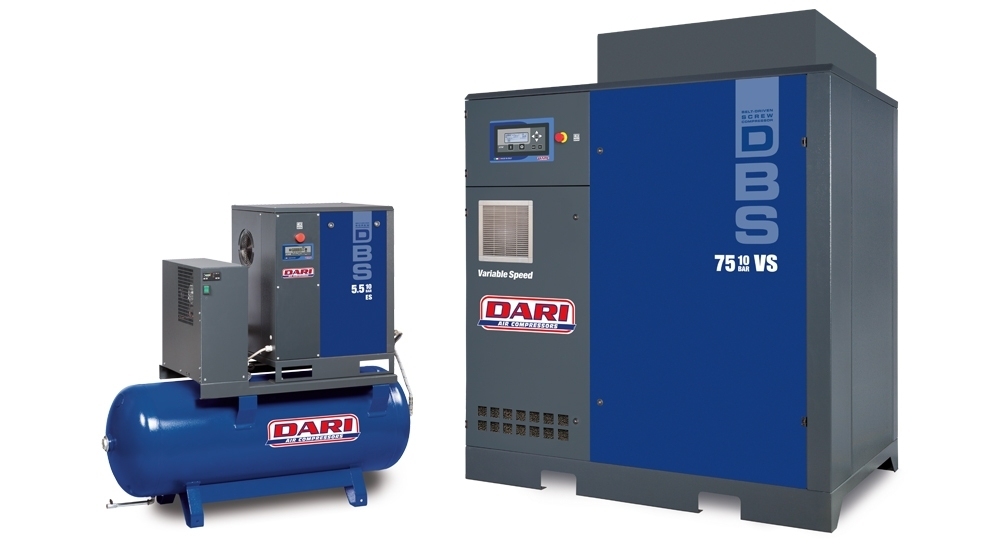

Rotary Screw Compressors

DBS SE 2.2 - 4 KW

  • Electromechanical ON/OFF switch.

  • Poly-V belt drive: ensures long service life and minimum maintenance.

  • The thermostatic controlled centrifugal fan ensures ideal cooling, keeping the machine’s noise level low.

  • Compact and modular design.

  • Versions: floor-mounted, 200-lt tank-mounted, with or without dryer.

  • Also available in the single-phase version.

  • “Premium Efficiency” IE3 electric motor (excluding the single-phase version).

  • FS14 air-end.

  • Independent ventilation.

  • The machines are supplied ready for use: simply connect the compressor to the power supply and the distribution start work without any additional effort.

DBS 4 - 5.5 KW

  • Poly-V belt transmission.

  • Compact and modular design.

  • Versions: floor-mounted, tank-mounted, with or without dryer.

  • ETMII electronic controller.

  • “Premium Efficiency” IE3 electric motor.

  • Max pressure: 8-10-13 bar.

  • FS14 air-end.

  • All the internal components are easily accessible for routine maintenance operations.

DBS 7.5 - 15 KW

  • Poly-V belt transmission.

  • Compact and modular design.

  • Versions: floor-mounted, tank-mounted, with or without dryer.

  • ETMII electronic controller.

  • “Premium Efficiency” IE3 electric motors.

  • Max pressure 8-10-13 bar.

  • FS26TF and FS50TF air-ends.

DBS 18.5 - 22 KW

  • Poly-V belt transmission.

  • Extremely compact design.

  • Versions: floor-mounted, with or without dryer.

  • DBS 22 is also available in a variable speed version.

  • ETIV electronic controller.

  • “Premium Efficiency” IE3 electric motors.

  • Max pressure: 8-10-13 bar.

  • FS50TF air-end.

Oil injection rotary screw compressors, easy to use, with belt transmission and power values from 2.2 to 4 kW. Available with various set-ups, with direct starter and “Premium Efficiency” IE3 electric motors.
All models are fitted with a phase sequence relay that prevents changes in the direction of rotation of the screw unit that may cause damages.

DBS 30 - 37 KW

  • Poly-V belt transmission.

  • Extremely compact design.

  • Versions: floor-mounted, with or without dryer.

  • DBS 38 also available in a variable speed version.

  • ETIV electronic controller.

  • “Premium Efficiency” IE3 electric motors.

  • Max pressure 8-10-13 bar.

  • FS100 and FS130 air-ends.

  • Designed for heavy-duty use.

  • Easy maintenance.

DBS 45 - 55 KW

The superior components selection and the compact internal layout make this range of compressors stand out in terms of high performance and minimum footprint.
The cooling airflow, channeled by the thermostatic controlled axial fan, cools down an oversized combined oil/air heat exchanger: this lets the compressor run in severe temperature conditions.
The ventilation circuit is completed by a cabinet prefiltering panel (standard on every model) that separates the incoming dust and it keeps clean the inside of the machine.
Wide front and rear access panels allow easy maintenance and immediate check of all main components, reducing the time of inspection and maintenance.



  • Poly-V belt transmission.
  • Extremely compact design.
  • Only available in the floor-mounted version.
  • ETIV electronic controller.
  • “Premium Efficiency” IE3 electric motor.
  • Max pressure: 7.5-10-13 bar.
  • FS130 air-end.
  • Designed for heavy-duty use.
  • Easy maintenance.

DBS 55 - 75 KW

Oil injection rotary screw compressors, with belt transmission and power values from 55 to 75 kW.

These compressors are extremely efficient thanks to the low rotating speed of the pumping unit and their “Premium Efficiency” IE3 motors.
The machines featuring the ETIV electronic controller can be fitted with the "SMS Device" remote control system for the compressor via the internet.

The range of DARI screw compressors is designed for industrial applications and offered with a different power or technical set-up, depending on the customer’s specific demands.
 All models in the range have the following benefits in common, which are typical of DARI screw technology:

  • High volumetric yield: the free air delivered from our high-efficiency air-ends contributes to lower energy consumption and therefore significant savings.
  • Reliability: the low speed of the air-end guarantees minimal wear and long durability.
  • Optimal monitoring and control: the advanced controllers fitted to the DBS range have been specifically developed to guarantee optimum monitoring and regulation of the operation of the compressor, allowing flexibility and full programming of the complete compressed air station for maximum efficiency and safety.
  • Suitable for intense and non-stop operation: 24hrs without a performance drop.
  • Low installation cost: the versions fitted with tank and dryer are ready for use, with no added cost of installation.
  • Low noise levels: this means the operator can install the compressor near the workstation.
  • Compact design means reduced dimensions
  • Easy maintenance: the DARI rotary screw compressors are built with special attention to facilitate the routine maintenance and accessibility of the internal components.
  • “IE3 Premium Efficiency” motors: combined with our high-performance air-ends, minimize the energy costs. Furthermore, the IE3 motors reduce CO2 emissions: an important contribution to protecting the environment.

Oil injection rotary screw compressors, easy to use, with belt transmission and power values from 4 to 5.5 kW. Available with various set-ups, with direct or star-delta starter and “Premium Efficiency” IE3 electric motors and ETMII electronic controller.
All models are fitted with a phase sequence relay that prevents changes in the direction of rotation of the screw unit that may cause damage.

Oil injection rotary screw compressors, with belt transmission and power values from 7.5 to 15 kW. Available with various set-ups, these high-efficiency compressors are extremely quiet thanks to the low rotating speed of the pumping unit and their “Premium Efficiency” IE3 motors.

Oil injection rotary screw compressors, with belt transmission and power values from 18.5 to 22 kW. Available with various set-ups, these high-efficiency compressors are extremely quiet thanks to the low rotating speed of the pumping unit and their “Premium Efficiency” IE3 motors.
Machines with power values starting from 18.5 kW, featuring the ETIV electronic controller, can be fitted with the "SMS Device" remote control system for the compressor via the internet.

Oil injection rotary screw compressors, with belt transmission and power values from 30 to 37 kW. Available with various set-ups, these high-efficiency compressors are extremely quiet thanks to the low rotating speed of the pumping unit and their “Premium Efficiency” IE3 motors.
The machines featuring the ETIV electronic controller can be fitted with the "SMS Device" remote control system for the compressor via the internet.

Oil injection rotary screw compressors, with belt transmission and power values from 45 to 55 kW.
These compressors are extremely efficient thanks to the low rotating speed of the pumping unit and their “Premium Efficiency” IE3 motors.
The machines featuring the ETIV electronic controller can be fitted with the "SMS Device" remote control system for the compressor via the internet.

Equipped with Poly-V belt drive, oversized combined heat exchanger and thermostatic controlled axial fan ensure optimal operational temperatures.
High-performance motors and the optimized selection of the machine parts offer efficiency and reliability even in extreme environmental conditions.
The ventilation circuit is completed by a cabinet prefiltering panel (standard on every model) that separates the incoming dust and it keeps clean the inside of the machine.
Main operating parameters are monitored by the ETIV controller that supports different languages. The controller provides alarm indications and stores alarm events to facilitate troubleshooting and routine maintenance planning.
Wide front and rear access panels allow easy maintenance and immediate check of all main components, reducing the time of inspection and maintenance.



  • Poly-V belt transmission.

  • Extremely compact design.

  • Only available in the floor-mounted version.

  • Also available in variable speed version.

  • ETIV electronic controller.

  • “Premium Efficiency” IE3 electric motor.

  • Max pressure: 7.5-10-13 bar.

  • FS130 air-end.

  • Designed for heavy-duty use.

  • Easy maintenance.
